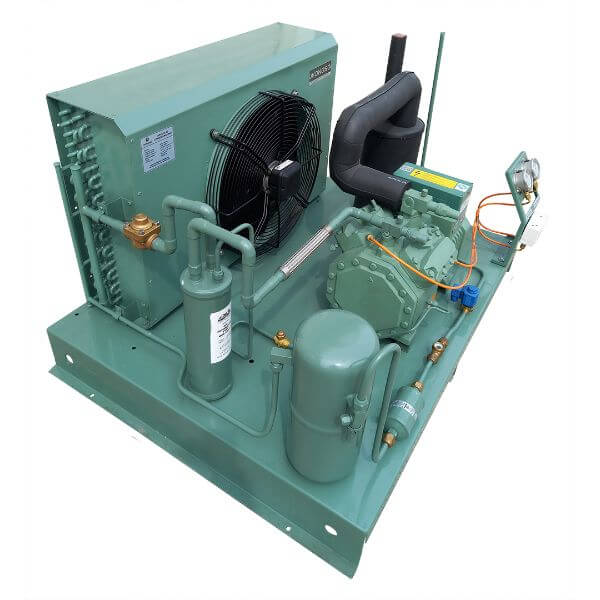

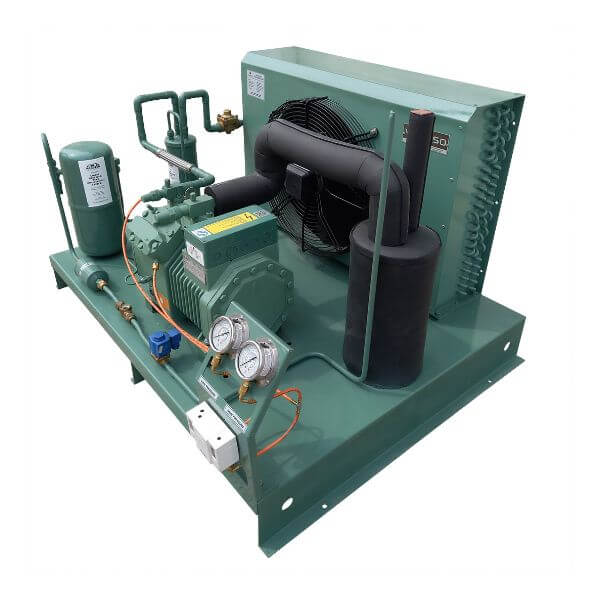

WXCU (Wongso Xuemei Condensing Unit)

WACU Model	Compressor	Size (HP)	Kondensor WONGSO	Evap WONGSO
WXCU-0005-M		0.5		WDL 2.0/10
WXCU-0007-M		0.7		WDL 3.0/15
WXCU-0020-M		2		WDL 3.0/15
WXCU-0021-M		2		WDL 5.0/25
WXCU-0030-M		3		WDL 5.0/25
WXCU-0031-M		3		WDL 8.0/40
WXCU-0032-M		3		WDL 8.0/40
WXCU-0040-M		4		WDL 11.2/55
WXCU-0050-M	500-BV-18	5	WAX 0050	WDL 11.2/55
WXCU-0060-M	600-BV-23	6	WAX 0060	WDL 11.2/55
WXCU-0070-M	700-BV-27	7	WAX 0070	WDL 16.2/80
WXCU-0090-M	900-BV-33	9	WAX 0090	WDL 21.3/105
WXCU 0100-M	1000-BV-34	10	WAX 0100
WXCU-0120-M	1200-BV-41	12	WAX 0120	WDL 21.3/105
WXCU-0150-M	1500-BV-48	15	WAX 0150	WDL 25.0/125
WXCU-0200-M	2000-BV-56	20	WAX 0200	WDL 32.6/160
WXCU-0220-M		22		WDL 32.6/160
WXCU-0250-M	2500-BV-71	25	WAX 0250	WDL 37.6/185
WXCU-0300-M	3000-BV-86	30	WAX 0300	WDL 42.7/210
WXCU-0330-M		33		WDL 52.9/260
WXCU-0350-M		35		WDL 52.9/260
WXCU-0351-M	3500-BW-106	35	WAX 0350	WDL 66.0/330
WXCU-0400-M	4000-BW-129	40	WAX 0400	WDL 66.0/330
WXCU-0500-M	5000-BW-154	50	WAX 0500	WDL 82.0/410

WACU Model	Compressor	Size (HP)	Kondensor WONGSO	Evap WONGSO
WXCU-0010-L		1	WAX 0010	WDD 2.2/12
WXCU-0020-L		2	WAX 0020	WDD 2.8/15
WXCU-0021-L		2	WAX 0020	WDD 3.7/22
WXCU-0022-L		2	WAX 0030	WDD 3.7/22
WXCU-0030-L		3	WAX 0030	WDD 5.6/30
WXCU-0031-L	300-BV-18	3	WAX 0030	WDD 5.6/30
WXCU-0040-L	400-BV-23	4	WAX 0040	WDD 7.5/40
WXCU-0050-L	500-BV-27	5	WAX 0050	WDD 7.5/40
WXCU-0060-L	600-BV-33	6	WAX 0060	WDD 11.2/60
WXCU-0080-L	800-BV-41	8	WAX 0080	WDD 11.2/60
WXCU-0100-L	1000-BV-48	10	WAX 0100	WDD 14.9/80
WXCU-0120-L	1200-BV-56	12	WAX 0120	WDD 14.9/80
WXCU-0130-L		13	WAX 0120	WDD 18.7/100
WXCU-0150-L	1500-BV-71	15	WAX 0150	WDD 22.4/120
WXCU-0200-L	2000-BV-86	20	WAX 0200	WDD 26.2/140
WXCU-0220-L		22	WAX 0250	WDD 26.2/140
WXCU-0250-L		25	WAX 0250	WDD 30.0/160
WXCU-0251-L	2500-BW-106	25	WAX 0250	WDD 37.4/200
WXCU-0300-L	3000-BW-129	30	WAX 0300	WDD 37.4/200
WXCU-0400-L	4000-BW-154	40	WAX 0400	WDD 46.2/250

Kategori: Kondensor & Kondensing Unit Unit Pendingin Evaporator Cooler

WXCU Wongso Xuemei Condensing Unit
