Axial Fan FC Series FC Series
FC series
Product specification:

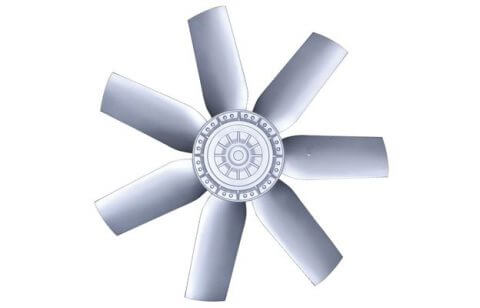

Fluted aluminium die-cast blade for use in aerodynamically designed air duct systems, such as full nozzles and pipe installation. Available dimensions 315 – 1250 mm, volume flow rates up to 62,000 m³/h and static pressure increase up to 300 Pa.
Properties & special features:
- High flexibility due to 100% speed controlled volume flow rate
- Compromise between energy efficiency and investment costs
- Very smooth running and high durability due to dynamic balancing on 2 levels
- Meets ErP Directive 2015
- Numerous approvals (incl. VDE, UL, CCC, EAC, CE)
Motor concepts:
External rotor motors
- AC technology
| MODEL | TYPE |
|---|---|
| Axial Fan 20″ – 380V – 3 phase – 4 pole | FC050 – VDK/VDS/VDQ |
| Axial Fan 25″ – 380V – 3 phase – 6 pole | FC063 – SDK/SDS/SDQ |
| Axial Fan 25″ – 380V – 3 phase – 4 pole | FC063 – VDK/VDS/VDQ |
| Axial Fan 32″ – 380V – 3 phase – 4 pole | FC080 – VDK/VDS/VDQ |
| Axial Fan 36″ – 380V – 3 phase – 4 pole | FC091 – VDK/VDS/VDQ |
